Eskişehir Water Treatment Plant · Chlorine Contact Tank (CCT)

Select a Design

Conventional Design

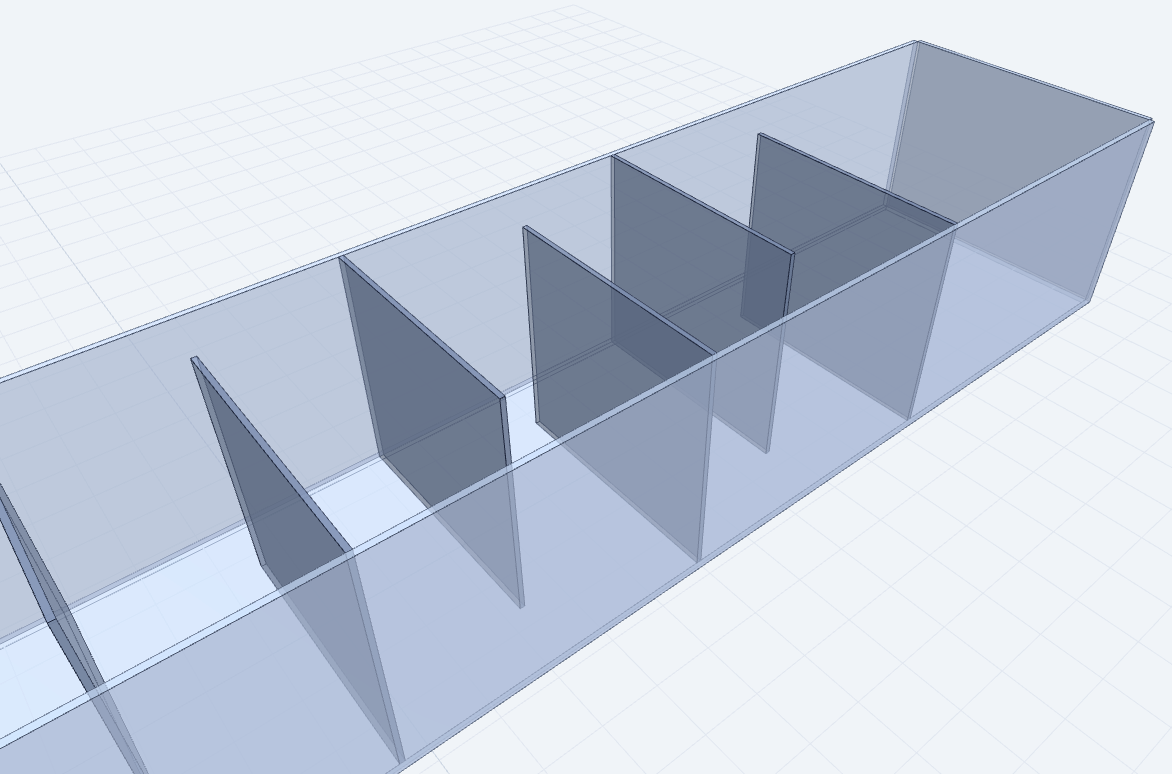

· Full-height, around-the-end serpentine baffles
· Baffling factor θ10 = 0.546 — Average
· Morrill Index: 2.61
· Spring flow condition, Q = 120,000 m³/day

CODECWATER Design

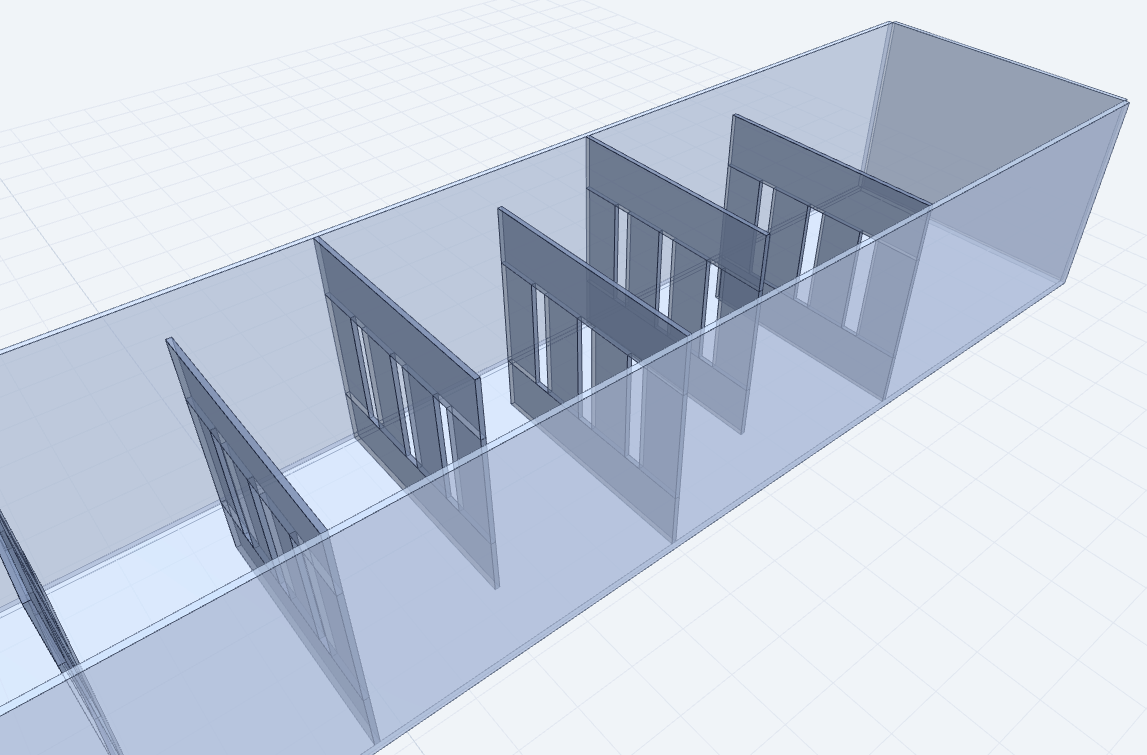

· Slot-Baffle Design — 3 vertical slots per baffle
· Baffling factor θ10 = 0.655 — Good
· Morrill Index: 1.99 ≈ 2.0 (ideal)
· Dispersion index σ reduced by 46%

▶ Visualization Controls

Scene Objects

Walls Baffles Inlet Outlet Axes Chamber Labels

Opacity

Velocity Range

V_min m/s

V_max m/s

Eskişehir Water Treatment Plant — Chlorine Contact Tank (CCT).

Tank Geometry

Dimensions

Length40.05 m

Width6.55 m

Water DepthSeason-dependent

Chamber / Baffle Layout

Chambers11

Baffles10

ConfigurationAround-the-end serpentine

Baffle Thickness0.10 m

Passage Gap~1.27–1.28 m

Inlet / Outlet

Inlet

Submerged · x = 0 wall

y: 3.80–5.05 m

Outlet

Side-wall port · Chamber 11

x: 35.5–39.05 m

Baffle Positions

Seasonal Flow Conditions

Season	Flow Rate (m³/day)	Water Depth (m)	Wet Volume (m³)	MRT (s)	Injection Time (s)
Winter	80,000	4.85	1270.46	1372.1	69
Spring ★	120,000	5.05	1322.85	952.45	48
Summer	160,000	5.25	1375.24	742.63	37

★ The Conventional Design results currently shown correspond to the Spring flow condition.

Conventional Design

CODECWATER Design

Velocity magnitude

0.000 m/s—

Axis

Range V_min m/s V_max m/s

Design Comparison

KPI	Conv.	CODEC	Δ
θ10	0.546	0.655	+20%
θ50	0.908	0.927	+2%
θ90	1.424	1.303	−9%
θ10 Class	Average	Good	—
Morrill	2.61	1.99	−24%
AD Index	0.93	0.876	−6%
σ	0.134	0.073	−46%

RTD Curves ⊞ Expand

Conventional · E(θ)

Conventional · F(θ)

CODECWATER · E(θ)

CODECWATER · F(θ)

Compare Designs

Mixing performance comparison between the Conventional Design (around-the-end baffles) and the CODECWATER Design (Slot-Baffle), Spring flow condition.

KPI	Conventional Design	CODECWATER Design	Change
θ10	0.546	0.655	+20%
θ50	0.908	0.927	+2%
θ90	1.424	1.303	−9%
θ10 (Baffling Factor)	0.546 Average	0.655 Good	+20%
Morrill Index (θ90/θ10)	2.61	1.99 ≈ 2	−24%
AD Index	0.93	0.876	−6%
Dispersion Index (σ)	0.134	0.073	−46%

Key takeaways:
· Baffling factor θ10 improves from Average → Good (+20%)
· Morrill Index drops from 2.61 to 1.99, approaching the ideal value of 2.0
· Dispersion index σ reduced by 46%, indicating significantly more uniform flow
· Spring flow condition, Q = 120,000 m³/day
